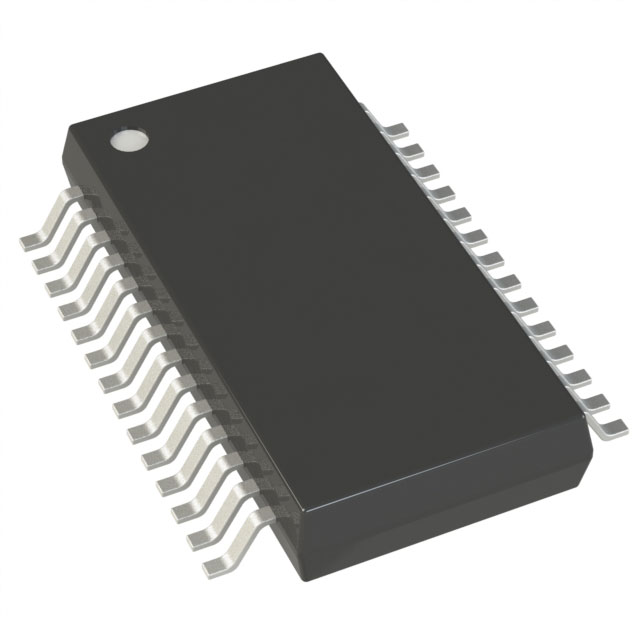

AD1896AYRSZ OverviewWith Tube, it comes in a case. A Surface Mount mounting type is recommended for this product. In 28-SSOP (0.209, 5.30mm Width) case, it is embedded. With 2 channels, the device is equipped. You can refer to Sample Rate Converter functions in this part. Digital Audio Interfacing is one of the possible applications of the device. Votage within 3.3V 5V is supplied. The device operates at a temperature in the range -40°C~105°C TA. On the chip, there are 28 terminations. Using the AD1896 family as a search term will yield similar parts. The following specifications apply to the device: 6kHz ~ 215kHz. On the chip, 28 pins are accessible. Consumer IC types can be sorted with CONSUMER CIRCUIT. This part should have a minimum supply voltage of 3.135V (Vsup). There is a voltage range of 3.33.3/5V volts that it can produce. Once 3.465V is reached, the maximal supply voltage (Vsup) is reached. The mount is mounted by Surface Mount. In a 3.3V-volt supply voltage, the chip conducts. Using a 43mA supply current, it operates. 24 is the number of bits on an IC chip.
AD1896AYRSZ FeaturesWith 28-SSOP (0.209, 5.30mm Width) channels
operate temperature at the range of -40°C~105°C TA
consumer IC type: CONSUMER CIRCUIT
operate supply current at 43mA
with 24 bits
AD1896AYRSZ ApplicationsThere are a lot of Analog Devices Inc.
AD1896AYRSZ Audio Special Purpose applications.
Consumer electronics
AV/DVD Receiver, AV Amplifier
Car or Mobile Audio System
Digital Television
Musical Instruments
Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703
Other Applications Requiring S/PDIF Receiver
Audio Differential Line Drivers
| Lifecycle Status | PRODUCTION (Last Updated: 1 month ago) |
| Factory Lead Time | 8 Weeks |
| Contact Plating | Tin |
| Mount | Surface Mount |
| Mounting Type | Surface Mount |
| Package / Case | 28-SSOP (0.209, 5.30mm Width) |
| Number of Pins | 28 |
| Operating Temperature | -40°C~105°C TA |
| Packaging | Tube |
| JESD-609 Code | e3 |
| Pbfree Code | no |
| Part Status | Active |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Number of Terminations | 28 |
| ECCN Code | EAR99 |
| Applications | Digital Audio Interfacing |
| Voltage - Supply | 3.3V 5V |
| Terminal Position | DUAL |
| Terminal Form | GULL WING |
| Peak Reflow Temperature (Cel) | 260 |
| Terminal Pitch | 0.65mm |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Base Part Number | AD1896 |
| Function | Sample Rate Converter |
| Qualification Status | Not Qualified |
| Operating Supply Voltage | 3.3V |
| Supply Voltage-Max (Vsup) | 3.465V |
| Power Supplies | 3.33.3/5V |
| Supply Voltage-Min (Vsup) | 3.135V |
| Number of Channels | 2 |
| Interface | I2S, TDM |
| Operating Supply Current | 43mA |
| Nominal Supply Current | 43mA |
| Power Dissipation | 132mW |
| Number of Bits | 24 |
| Output Power | 132mW |
| Resolution | 3 B |
| Specifications | 6kHz ~ 215kHz |
| Conversion Rate | 192 ksps |
| Consumer IC Type | CONSUMER CIRCUIT |
| Height | 1.75mm |
| Length | 10.2mm |
| Width | 5.3mm |
| REACH SVHC | No SVHC |
| RoHS Status | ROHS3 Compliant |
| Lead Free | Contains Lead |
| Mfr | Analog Devices Inc. |
| Series | - |
| Product Status | Active |
| Interface | I²S, TDM |
| Voltage - Supply | 3.3V, 5V |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP |
AD1896AYRSZ Datasheet
