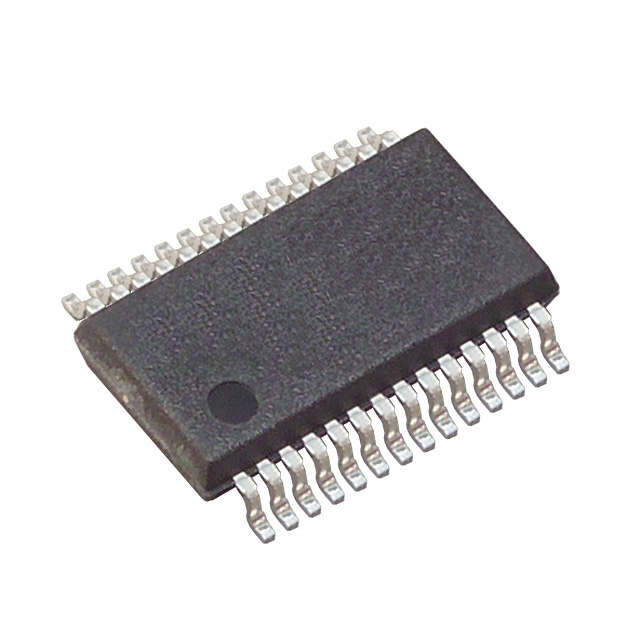

SRC4193IDB Overview
Additionally, there is a case included with the book as well. The mounting type recommended by the manufacturer is Surface Mount. A 28-SSOP (0.209, 5.30mm Width) case contains it. A 2 channel is present on the device. For your reference, this part contains Sample Rate Converter functions. Digital Audio Interfacing can be used with the device. We supply it within 3.3V. Using -45°C~85°C TA as a temperature range, this device operates. It has 28 terminations. A search for parts belonging to the SRC4193 family will yield similar results. Refer to the device's specifications: 4kHz ~ 212kHz. An accessible 28 pin can be found on the chip. You can use CONSUMER CIRCUIT to sort consumer ICs on a part. In order to operate this part, the minimum supply voltage (Vsup) must not be less than 3V volts. A voltage of 3.3V volts can be given by it. Vsup reaches its maximum (3.6V). Data transfers are limited to 106 kHz bandwidths. In IC chips, 24 bits are present.
SRC4193IDB Features
With 28-SSOP (0.209, 5.30mm Width) channels
operate temperature at the range of -45°C~85°C TA
consumer IC type: CONSUMER CIRCUIT
with 24 bits

SRC4193IDB Applications
There are a lot of Texas Instruments
SRC4193IDB Audio Special Purpose applications.

Digital Television
Musical Instruments
Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703
Other Applications Requiring S/PDIF Receiver
Audio Differential Line Drivers
Audio Mix Consoles
Distribution Amplifiers
Graphic and P arametric Equalizers

Lifecycle Status	ACTIVE (Last Updated: 6 days ago)
Factory Lead Time	6 Weeks
Contact Plating	Gold
Mounting Type	Surface Mount
Package / Case	28-SSOP (0.209, 5.30mm Width)
Surface Mount	YES
Number of Pins	28
Weight	210.013267mg
Operating Temperature	-45°C~85°C TA
Packaging	Tube
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	28
Termination	SMD/SMT
ECCN Code	EAR99
Applications	Digital Audio Interfacing
Max Power Dissipation	660μW
Voltage - Supply	3.3V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Terminal Pitch	0.65mm
Base Part Number	SRC4193
Function	Sample Rate Converter
Supply Voltage-Max (Vsup)	3.6V
Power Supplies	3.3V
Supply Voltage-Min (Vsup)	3V
Number of Channels	2
Interface	I2S, TDM
Nominal Supply Current	66mA
Number of Bits	24
Output Power	225mW
Bandwidth	106 kHz
Resolution	3 B
Specifications	4kHz ~ 212kHz
Max Frequency	212kHz
Conversion Rate	212 ksps
Consumer IC Type	CONSUMER CIRCUIT
Height	2mm
Length	10.2mm
Width	5.3mm
Thickness	1.95mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
Mfr	Texas Instruments
Series	-
Product Status	Active
Interface	I²S, TDM
Operating Temperature	-45°C ~ 85°C (TA)
Package / Case	28-SSOP (0.209", 5.30mm Width)
Supplier Device Package	28-SSOP
