SRC4194IPAG Overview

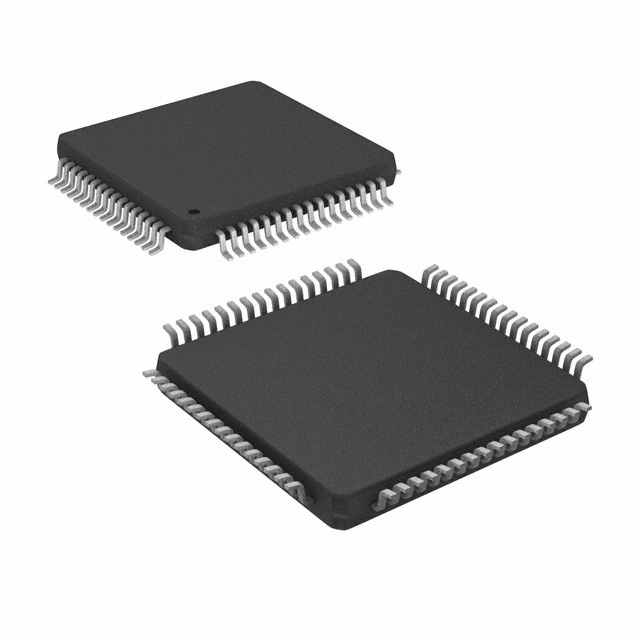

It comes in a case with Tray. It recommended mounting type is Surface Mount. It is embedded in 64-TQFP case. The device is with 4 channels. This part includes Sample Rate Converter functions for your reference. The device can be applied in Digital Audio Interfacing. It is supplied votage within 1.8V 3.3V. This device operates temperature at the range of -45°C~85°C TA. The number of terminations on the chip is 64. Similar parts can be found by searching for the SRC4194 family. Please refer to the related specifications of the device : 4kHz ~ 212kHz. There are 64 pins accessible on the chip. CONSUMER CIRCUIT can be used to sort the part's consumer IC type. The minimum supply voltage (Vsup) for this part should not be less than 1.65V. It can give voltage at 1.8/3.33.3V volts. The maximal supply voltage (Vsup) reaches 2V. The chip conducts in a supply voltage of 3.6V. IT ALSO REQUIRES 3V TO 3.6V SUPPLY can also be founded when using this device. The total number of IC chip bits is 24.
SRC4194IPAG Features
With 64-TQFP channels
operate temperature at the range of -45°C~85°C TA
consumer IC type: CONSUMER CIRCUIT
with 24 bits

SRC4194IPAG Applications
There are a lot of Texas Instruments
SRC4194IPAG Audio Special Purpose applications.

Mobile computing
Portable electronics
Consumer electronics
AV/DVD Receiver, AV Amplifier
Car or Mobile Audio System
Digital Television
Musical Instruments
Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703

Lifecycle Status	ACTIVE (Last Updated: 6 days ago)
Factory Lead Time	6 Weeks
Mounting Type	Surface Mount
Package / Case	64-TQFP
Surface Mount	YES
Number of Pins	64
Weight	270.000858mg
Operating Temperature	-45°C~85°C TA
Packaging	Tray
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	4 (72 Hours)
Number of Terminations	64
ECCN Code	EAR99
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Applications	Digital Audio Interfacing
Additional Feature	IT ALSO REQUIRES 3V TO 3.6V SUPPLY
Voltage - Supply	1.8V 3.3V
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Terminal Pitch	0.5mm
Base Part Number	SRC4194
Function	Sample Rate Converter
Output Type	Voltage
Operating Supply Voltage	3.6V
Supply Voltage-Max (Vsup)	2V
Power Supplies	1.8/3.33.3V
Supply Voltage-Min (Vsup)	1.65V
Number of Channels	4
Interface	I2S, TDM
Number of Bits	24
Specifications	4kHz ~ 212kHz
Consumer IC Type	CONSUMER CIRCUIT
Height	1.2mm
Length	10mm
Width	10mm
Thickness	1mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
Mfr	Texas Instruments
Series	-
Product Status	Active
Interface	I²S, TDM
Voltage - Supply	1.8V, 3.3V
Operating Temperature	-45°C ~ 85°C (TA)
Supplier Device Package	64-TQFP (10x10)
