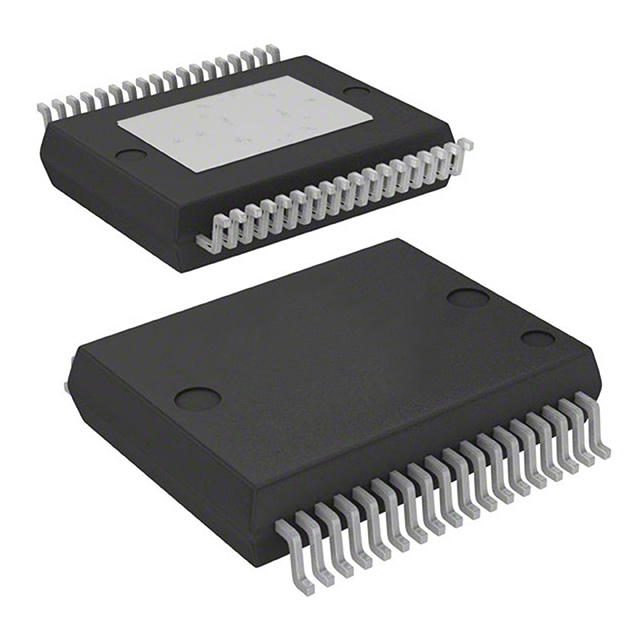

STA369BWTR Overview
The book is also accompanied by a case, which only adds to the value of the book. As a mounting type, Surface Mount is recommended for it. A 36-BFSOP (0.295, 7.50mm Width) Exposed Pad case has been embedded with it. I have a device with 2 channels attached to it. In this part, you will find Fully Integrated Processor functions that you may find useful. In addition to being used in Pre-Amplifier, the device can be used in Y as well. Votage is supplied within the specified time frame. -20°C~85°C TA is the range of temperature for this device. This chip has 36 terminations, which means it has 36 terminations on it. The STA369 family of parts can be found by searching for a part number that is similar to it. In order to better understand the specifications of the device, please refer to the following details: Full Flexible Amplification. As far as the 36 pins on the chip are concerned, they are accessible. It is possible to sort the consumer IC type of a part using CONSUMER CIRCUIT. It is important that the minimum supply voltage (Vsup) for this part is greater than 5V. This electrical component illustrates the Sound Terminal™ series. If the voltage gain is to stay at 42 dB, it should be set to 42 dB.
STA369BWTR Features
With 36-BFSOP (0.295, 7.50mm Width) Exposed Pad channels
operate temperature at the range of -20°C~85°C TA
consumer IC type: CONSUMER CIRCUIT

STA369BWTR Applications
There are a lot of STMicroelectronics
STA369BWTR Audio Special Purpose applications.

Replacement of DIR1703
Other Applications Requiring S/PDIF Receiver
Audio Differential Line Drivers
Audio Mix Consoles
Distribution Amplifiers
Graphic and P arametric Equalizers
Dynamic Range Processors
Digital Effects Processors
Telecom Systems
Hi-Fi Equipment

Lifecycle Status	ACTIVE (Last Updated: 7 months ago)
Factory Lead Time	6 Weeks
Mounting Type	Surface Mount
Package / Case	36-BFSOP (0.295, 7.50mm Width) Exposed Pad
Surface Mount	YES
Number of Pins	36
Operating Temperature	-20°C~85°C TA
Packaging	Tape & Reel (TR)
Series	Sound Terminal™
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	36
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn) - annealed
Applications	Pre-Amplifier
Max Power Dissipation	8W
Voltage - Supply	5V~26V
Terminal Position	DUAL
Terminal Form	GULL WING
Terminal Pitch	0.5mm
Reach Compliance Code	not_compliant
Base Part Number	STA369
Function	Fully Integrated Processor
Qualification Status	Not Qualified
Supply Voltage-Min (Vsup)	5V
Number of Channels	2
Interface	I2C, I2S
Nominal Supply Current	52mA
Output Power	60W
Specifications	Full Flexible Amplification
Gain	42 dB
Consumer IC Type	CONSUMER CIRCUIT
Length	10.3mm
Width	7.5mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
Mfr	STMicroelectronics
Product Status	Active
Interface	I²C, I²S
Voltage - Supply	5V ~ 26V
Operating Temperature	-20°C ~ 85°C (TA)
Package / Case	36-PowerBFSOP (0.295", 7.50mm Width)
Supplier Device Package	PowerSSO-36 EPD
