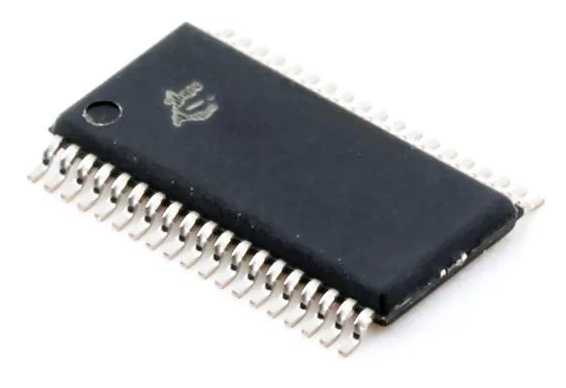

TAS3108DCP Overview
There is also an accompanying case included with this set. There is a recommendation that it should be mounted with a Surface Mount type mount. The file is embedded in a 38-TFSOP (0.173, 4.40mm Width) Exposed Pad case. This device has 4 channels. For your reference, here are some Audio Signal Processor functions. It can be used in Automotive Audio, Consumer Audio. There is a supply of votage within 3V~3.6V. 0°C~70°C TA is the temperature range for this device. A chip has 38 terminations. You can find similar parts by searching for the TAS3108 family. Chips have 38 pins that can be accessed. In this case, Surface Mount mounts it. This electrical component represents the Automotive, AEC-Q100 series. 3.3V is the supply voltage for the chip. It is capable of handling a supply voltage of 3.3V. A chip with 48 bits has a total of 48 bits. The device has a total of DIGITAL SIGNAL PROCESSOR, OTHER uPs/uscs/peripheral ICs. Using a 135MHz frequency, it can perform efficiently.
TAS3108DCP Features
With 38-TFSOP (0.173, 4.40mm Width) Exposed Pad channels
operate temperature at the range of 0°C~70°C TA
Supply voltage at 3.3V volts
with 48 bits

TAS3108DCP Applications
There are a lot of Texas Instruments
TAS3108DCP Audio Special Purpose applications.

AV/DVD Receiver, AV Amplifier
Car or Mobile Audio System
Digital Television
Musical Instruments
Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703
Other Applications Requiring S/PDIF Receiver
Audio Differential Line Drivers
Audio Mix Consoles

Lifecycle Status	ACTIVE (Last Updated: 1 week ago)
Factory Lead Time	6 Weeks
Contact Plating	Gold
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	38-TFSOP (0.173, 4.40mm Width) Exposed Pad
Number of Pins	38
Weight	130.010913mg
Operating Temperature	0°C~70°C TA
Packaging	Tube
Series	Automotive, AEC-Q100
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	38
Applications	Automotive Audio, Consumer Audio
Voltage - Supply	3V~3.6V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	3.3V
Terminal Pitch	0.5mm
Frequency	135MHz
Base Part Number	TAS3108
Function	Audio Signal Processor
Operating Supply Voltage	3.3V
Number of Channels	4
Interface	I2C
Number of I/O	1
RAM Size	14kB
uPs/uCs/Peripheral ICs Type	DIGITAL SIGNAL PROCESSOR, OTHER
Number of Bits	48
Data Bus Width	32b
Boundary Scan	NO
Low Power Mode	YES
Format	FIXED POINT
Integrated Cache	NO
RAM (words)	3072
Barrel Shifter	NO
Internal Bus Architecture	MULTIPLE
Height	1.2mm
Length	9.7mm
Width	4.4mm
Thickness	1.15mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
