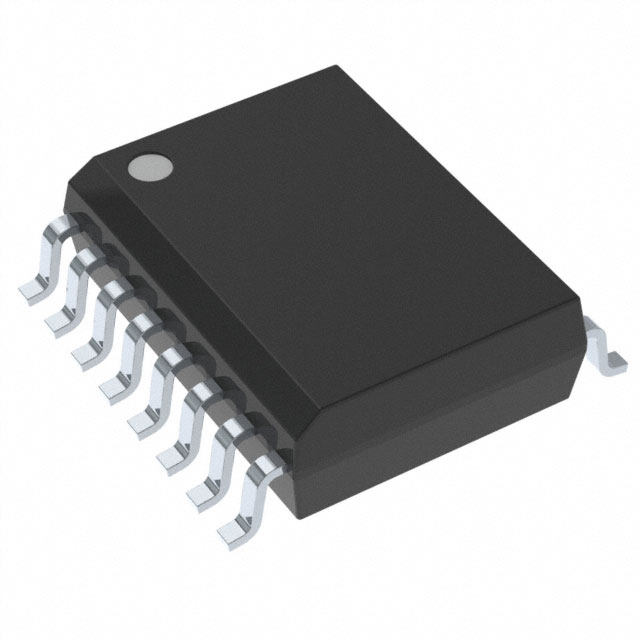

PGA2310UA OverviewThere is also an accompanying case included with this set. There is a recommendation that it should be mounted with a Surface Mount type mount. The file is embedded in a 16-SOIC (0.295, 7.50mm Width) case. This device has 2 channels. For your reference, here are some Volume Control functions. It can be used in Automotive Audio, Musical Instruments, Professional Audio. There is a supply of votage within ±4.5V~15.5V. -40°C~85°C TA is the temperature range for this device. A chip has 16 terminations. You can find similar parts by searching for the PGA2310 family. Refer to the following specifications for the device: 31.5dB ~ -95.5dB. Chips have 16 pins that can be accessed. In this case, Surface Mount mounts it. 5V is the supply voltage for the chip. A 1 band is present on it. Maintain 120 dB as the voltage gain. With this device, IT ALSO REQUIRES 4.5V TO 5.5V SUPPLY can be founded as well.
PGA2310UA FeaturesWith 16-SOIC (0.295, 7.50mm Width) channels
operate temperature at the range of -40°C~85°C TA
PGA2310UA ApplicationsThere are a lot of Texas Instruments
PGA2310UA Audio Special Purpose applications.
AV/DVD Receiver, AV Amplifier
Car or Mobile Audio System
Digital Television
Musical Instruments
Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703
Other Applications Requiring S/PDIF Receiver
Audio Differential Line Drivers
Audio Mix Consoles
Lifecycle Status | ACTIVE (Last Updated: 3 days ago) |
Factory Lead Time | 6 Weeks |
Contact Plating | Gold |
Mount | Surface Mount |
Mounting Type | Surface Mount |
Package / Case | 16-SOIC (0.295, 7.50mm Width) |
Number of Pins | 16 |
Weight | 420.395078mg |
Operating Temperature | -40°C~85°C TA |
Packaging | Tube |
JESD-609 Code | e4 |
Pbfree Code | yes |
Part Status | Active |
Moisture Sensitivity Level (MSL) | 2 (1 Year) |
Number of Terminations | 16 |
ECCN Code | EAR99 |
Applications | Automotive Audio, Musical Instruments, Professional Audio |
Additional Feature | IT ALSO REQUIRES 4.5V TO 5.5V SUPPLY |
Voltage - Supply | ±4.5V~15.5V |
Terminal Position | DUAL |
Terminal Form | GULL WING |
Peak Reflow Temperature (Cel) | 260 |
Base Part Number | PGA2310 |
Function | Volume Control |
Operating Supply Voltage | 5V |
Number of Channels | 2 |
Interface | SPI |
Nominal Supply Current | 800μA |
Input Offset Voltage (Vos) | 500μV |
Gain Bandwidth Product | 1.5MHz |
Specifications | 31.5dB ~ -95.5dB |
Gain | 120 dB |
Number of Bands | 1 |
Height | 2.65mm |
Length | 10.3mm |
Width | 7.5mm |
Thickness | 2.35mm |
Radiation Hardening | No |
RoHS Status | ROHS3 Compliant |
Lead Free | Lead Free |
Mfr | Texas Instruments |
Series | - |
Product Status | Active |
Voltage - Supply | ±4.5V ~ 15.5V |
Operating Temperature | -40°C ~ 85°C (TA) |
Package / Case | 16-SOIC (0.295", 7.50mm Width) |
Supplier Device Package | 16-SOIC |
